2 In 1 C / U Stud Roll Forming Machine For Light Weight Steel Truss

Description of Combined C / U Roll Forming Machine

Combined UC light keel machine could be used to make C stud and U track by one machine and you do not need to adjust spacer. The combined U track and C stud machine is like making two machine together but using one set of electricity system, PLC control system and machine frame. By this method, the combined machine takes little space and save some money. For any sizes U track and C stud could be combined together.

Main Specifications of Stud and Track Roll Forming Machine

• Material: G.i Coil
• Material Thickness:0.4-1.0mm
• Main Power: 4KW
• Hydraulic power: 4KW
• Forming Station: about 10 steps ( adopt Italy Technology )
• Axis Diameter: ¢ 70 mm
• Forming Speed: 0-15m/min
• Forming Frame Structure: Guiding Column + Slide Blocks; This forming frame structure design is much high precision than wall plate welding structure
• PLC Brand: PANASONIC Brand
• Machine Diameter: about 7000mm(L)x800mm(W)x1300mm (H)
• Weight of machine: about 4 Ton
• Voltage: 380V, 3 Phase 50Hz ( or depend on customer’s requirement )

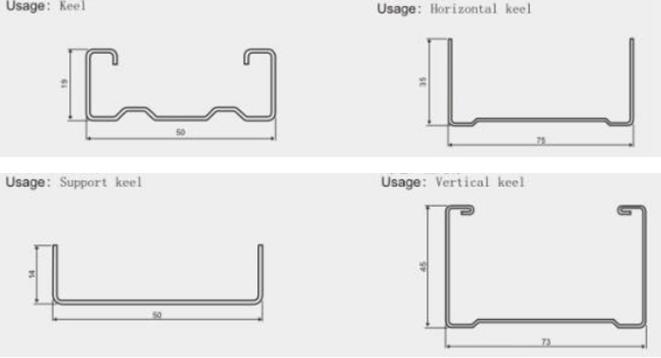

Reference Drawings

Applications

Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten,

roof truss, c truss, light weight steel truss...

Our Advantage

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience
